Article On the efficacy of Xe+-pFIB preparation to avoid Ga+-FIB induced phase transformations in Al-Ni alloys

Hendrik C. Jansen ORCID ; Amit Sharma ; Krzysztof Wieczerzak ORCID ; Ganesh K. Nayak ; Jochen M. Schneider ORCID ; Jakob Schwiedrzik ; Thomas E.J. Edwards SAMURAI ORCID ; Johann Michler

1-s2.0-S1359646225000533-main_forMDR.pdf
Download file (4.5 MB)
Download as zip (4.31 MB)
Collection

Citation
Hendrik C. Jansen, Amit Sharma, Krzysztof Wieczerzak, Ganesh K. Nayak, Jochen M. Schneider, Jakob Schwiedrzik, Thomas E.J. Edwards, Johann Michler. On the efficacy of Xe+-pFIB preparation to avoid Ga+-FIB induced phase transformations in Al-Ni alloys. Scripta Materialia. 2025, 260 (), 116589. https://doi.org/10.1016/j.scriptamat.2025.116589

Description:

(abstract)

Preparation of an Al-Ni alloy for transmission electron microscopy (TEM) by focused ion beam (FIB) milling using Ga+ ions induced phase transformations, risking misinterpretation: from FCC Al-Ni solid solution to FCC Al-Ni and orthorhombic Al3Ni phases. Upon milling a nanolaminated Al95Ni5 - AlOx thin film with Ga+ ions, local Ga segregations of up to 15 at.% and the concurrent formation of orthorhombic regions are observed. This is consistent with density functional theory calculations indicating that the orthorhombic structures with and without Ga are more stable than the corresponding FCC compositions probed here. In contrast, Xe+ plasma FIB preparation did not alter the microstructure and the maximum Xe-content reached only 0.2 at.%. TEM-analysis did not reveal significant strain differences of the Al-Ni solid solution and Al3Ni. Hence, we recommend the use of Xe+-pFIB for sample preparation of alloys which are sensitive to Ga-induced phase transformations such as Al95Ni5 to prevent misinterpretation.

Rights:

Keyword: Nanocrystalline aluminium, Intermetallic phases, Phase transformation, Gallium, Focused Ion Beam (FIB) sample preparation

Date published: 2025-02-09

Publisher: Elsevier BV

Journal:

  • Scripta Materialia (ISSN: 13596462) vol. 260 116589

Funding:

  • Ministerium für Innovation, Wissenschaft und Forschung des Landes Nordrhein-Westfalen
  • Innosuisse Swiss Innovation Agency 109.352.1 “ORALCOAT”
  • Innosuisse Swiss Innovation Agency 42220.1 IP-ENG
  • NHR Center NHR4CES p0020883
  • Polish National Agency for Academic Exchange Polish Returns Programme

Manuscript type: Publisher's version (Version of record)

MDR DOI:

First published URL: https://doi.org/10.1016/j.scriptamat.2025.116589

Related item:

Other identifier(s):

Contact agent:

Updated at: 2025-02-23 22:49:58 +0900

Published on MDR: 2025-02-23 22:49:58 +0900

Filename Size

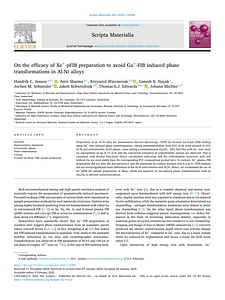

Filename 1-s2.0-S1359646225000533-main_forMDR.pdf (Thumbnail)
