Nanopowder synthesis enabling 1350 ºC full densification of (Gd,La)2O2S:Pr3+ luminescent ceramics via pressureless sintering and the effect of La3+ doping

Zhenqi Song; Fan Li; Sihan Feng; Zhiyuan Pan; Xuejiao Wang; Qi Zhu; Ji-Guang Li

doi:10.1016/j.jeurceramsoc.2024.04.079

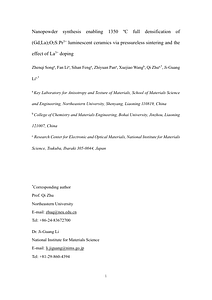

論文 Nanopowder synthesis enabling 1350 ºC full densification of (Gd,La)2O2S:Pr3+ luminescent ceramics via pressureless sintering and the effect of La3+ doping

Zhenqi Song (Northeastern University) ; Fan Li (Northeastern University) ; Sihan Feng (Northeastern University) ; Zhiyuan Pan (Northeastern University) ; Xuejiao Wang (Bohai University) ; Qi Zhu (Northeastern University) ; Ji-Guang Li (Research Center for Electronic and Optical Materials/Optical Materials Field/Polycrystalline Optical Material Group, National Institute for Materials Science)

Download file (1.43MB)
Download as zip (1.32MB)

コレクション

引用

Zhenqi Song, Fan Li, Sihan Feng, Zhiyuan Pan, Xuejiao Wang, Qi Zhu, Ji-Guang Li. Nanopowder synthesis enabling 1350 ºC full densification of (Gd,La)2O2S:Pr3+ luminescent ceramics via pressureless sintering and the effect of La3+ doping. Journal of the European Ceramic Society. 2024, 44 (12), 7350-7356. https://doi.org/10.1016/j.jeurceramsoc.2024.04.079

(BibTeX)

説明:

(abstract)

Pr3+ activated Gd2O2S (Gd2O2S:Pr3+) ceramics are important scintillators for X-ray computed tomography, whose fabrication generally requires harsh sintering conditions, such as 1650-1750 °C for pressureless sintering and ~1300-1500 °C and tens to hundreds MPa for pressure assisted sintering. We synthesized in this work a series of [(Gd1-xLax)0.99Pr0.01]2O2S (GLOS:Pr3+) nanopowders of fine crystallite size, high specific surface area and unimodal size distribution through two-step calcination of coprecipitated amorphous precursors. Dilatometry analysis confirmed that the nanopowders possess excellent sinterability, and fully dense GLOS:Pr3+ ceramics were successfully fabricated via pressureless sintering in an Ar/H2 gas mixture at a temperature as low as 1350 °C. La3+ doping was found to substantially enhance densification/grain growth and the 3P0-3H4 main emission (~510 nm) of Pr3+, and tends to elongate the fluorescence lifetime of the Pr3+ emission (~1.89-2.66 μs).

権利情報:
